Local venue server
A dedicated server runs inside each location for fast response, on-site reliability, and venue-specific configuration.
Golf Bay Operations Platform
Bay Control System
A local-server platform co-developed by NLJ Technologies and SAR Tech for golf entertainment venues that controls bay sessions, LED signs, ball dispenser power, service calls, themes, and booking-ready workflows from any device.
Any device
iPad, PC, phone, or tablet browser
Local server
Runs inside each golf venue
LED + power
Signs, mini displays, and dispenser modules
BAY
Bay Control - ClearfieldOpen DaySetupThemes
FLOOR 2
201
Avail
202
45 min
203
Avail
204
Server
205
Avail
206
18 min
207
Avail
208
Avail
209
Help
210
Avail
Venue control system
Designed for bays, staff, guests, and operations.
Activate play time, change LED panel messages, power ball dispensers, and receive service calls from one web-based system.
Co-developed by NLJ Technologies and SAR Tech for configurable, scalable golf operations.
Executive Overview
One platform for bay sessions, signs, service, and power control.
Bay Control turns each bay into a connected operating point: staff can start sessions, guests can request service, LED signage updates automatically, and dispenser power can be controlled bay by bay.
Any-device access
Staff can use an iPad, PC, phone, or tablet browser to view every bay and take action instantly.
Timed bay activation
Select a time, activate the bay, and let the system manage the operating state for that session.
LED sign control
Bay signs change color and text based on availability, active play, out-of-service status, and service requests.
Ball dispenser power
Custom power modules can energize the selected bay dispenser only when the bay is activated.
Booking-ready
The platform can integrate with booking systems to align reservations, bay state, and real-time operations.
Usage reports
Review bay usage time, stoppages, most-used bays, service activity, and operating trends from the system.
Multi-venue support
Chain admins can monitor every location, bay status, reports, and operating activity from a central office view.
Day-wide controls
Open Day and Close Day can activate or deactivate every bay at once for faster daily operations.
Out-of-service mode
Put any bay out of service for maintenance, private use, or operational reasons.
Bay Workflow
From selected time to live bay experience.
The system is built around the actual flow of a golf entertainment venue: session start, guest visibility, dispenser power, time remaining, and staff response.
1
Select bay and time
Staff chooses the bay and the session duration from the control interface.
2
Activate play
The bay changes state and the LED sign updates to the selected operating mode.
3
Power module turns on
The linked module can supply power to the selected ball dispenser.
4
Mini display counts down
The bay display shows time remaining above the tablet or PC station.
5
Guest calls service
A button can request drinks, assistance, or staff attention from the bay.
6
Staff clears the call
The interface and sign return to normal after the server or staff member responds.
AvailableGreen state for ready bays and open capacity.
In UseActive timing, dispenser power, and guest-facing status.
Call ServerService request shown on the sign and staff interface.
Control Interface
Every bay visible from one screen.
The control interface gives staff a clear operational view of the venue. Each bay can be set to available, active, out, or out of service, with timing and status changes reflected in the physical LED signs.
AvailableIn UseOut
Open Day and Close Day help the team activate or shut down the venue quickly, while the same platform can be accessed from iPad, PC, phone, or tablet devices.
LED Signs, Mini Displays, and Power
The bay status is visible where guests and staff need it.
Bay Control manages LED panels, bay mini displays, service-call messaging, themed sign behavior, and ball dispenser controller modules from one configurable system.
Employee status change demo
A real operator demo showing the Bay Control interface changing the physical LED sign state.
Close-up sign behavior
The bay sign changes text and color to communicate the active state directly above the bay.
Multi-bay sign line
Multiple signs update across the venue so staff and guests can read bay status from the aisle.
Theme and sign presets
Operators can switch LED sign behavior for regular operation, holidays, private events, and branded experiences.
Guest Service Workflow
Mini displays turn each bay into a service point.

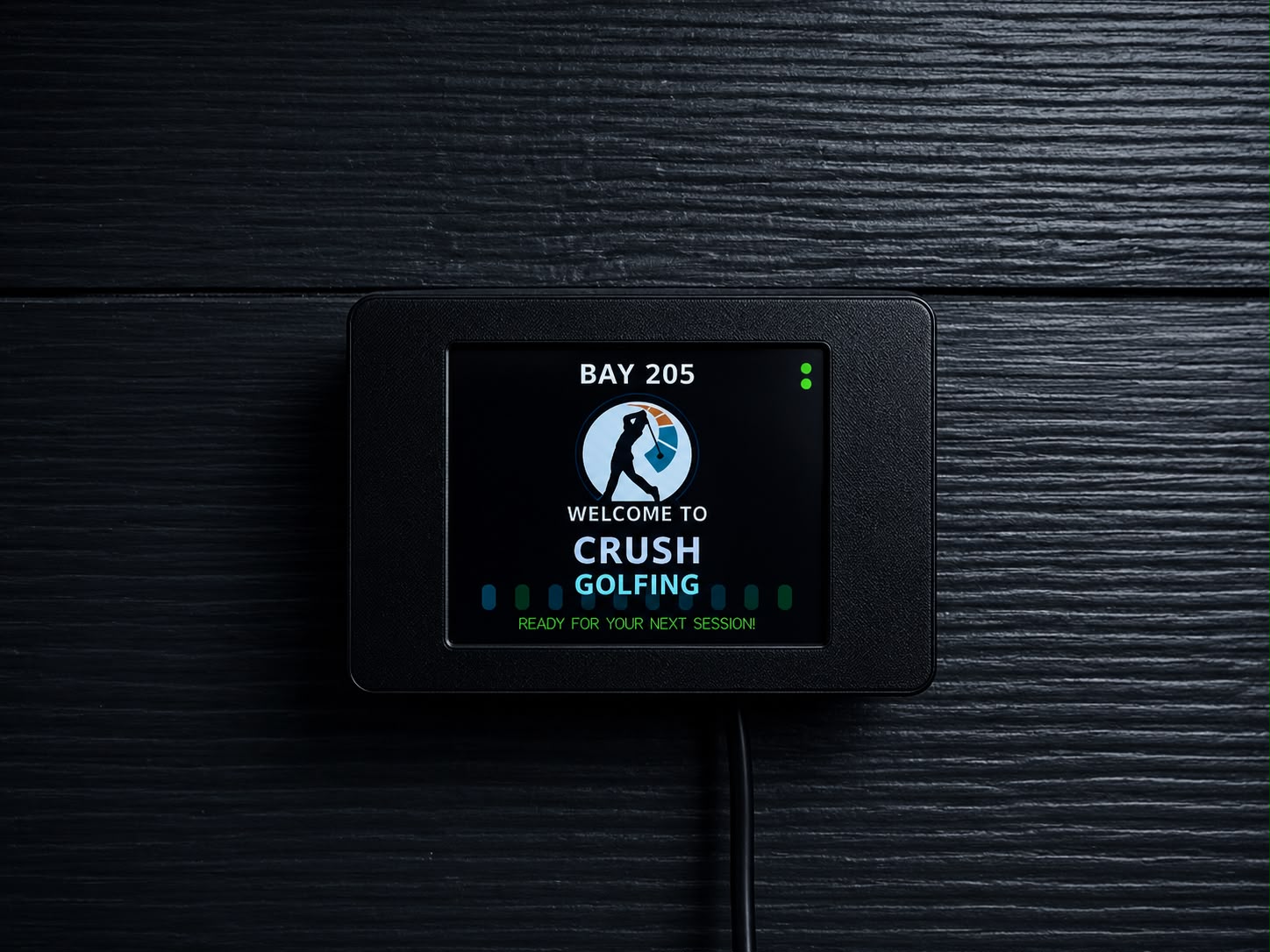

The mini display above the bay tablet or PC can show remaining game time and let guests call for drinks or attention without leaving the bay.
01
Time remaining
Guests can see how much play time remains directly from the bay position.
02
Call server
A service request can change the sign text and alert staff on the control interface.
03
Clear from staff
When the server arrives, staff can clear the request and return the bay to normal status.
System Architecture
Scalable architecture for modern golf venues.
The system is configurable by venue size, bay count, sign layout, dispenser type, maintenance workflow, and booking requirements. It can start as a local operating platform and scale into a deeper venue integration layer.
Local Bay Control ServerVenue-hosted platform for bay state, timing, signs, and integrations.
Staff DevicesiPad, PC, phone, or tablet web access.
LED Signs and Mini DisplaysStatus color, text, time remaining, themes, and service calls.
Power ModulesBay-by-bay dispenser power control tied to session state.
Day ControlsOpen Day, Close Day, and out-of-service states for daily operations and maintenance.
Multi-Venue AdminCentral office visibility across locations, bay status, usage, stoppages, and reports.
Booking SystemAdaptable to any booking provider or reservation and bay assignment workflow.
Power modules for ball dispensers
Bay Control can work with custom black controller modules designed for this system. When a bay is activated, the module can power the corresponding ball dispenser and keep inactive bays controlled.
- Bay-specific power behavior
- Configurable timing rules
- Designed for dispenser flexibility
- Useful for retrofit or new builds
Booking and venue systems
The platform is designed to be adaptable to any booking system, making it possible to connect bay state with external reservation workflows without locking the venue into one provider.
- Reservation-driven bay activation
- Open Day and Close Day controls
- Out-of-service states for maintenance
- Multi-venue admin visibility
Themes and Events
Signs can match the season, event, or brand.
The LED sign system can support visual themes such as Halloween, Christmas, private events, or custom venue branding.
Halloween
Seasonal color and message packages for themed guest experiences.
Christmas
Holiday-ready signage for special events and seasonal promotions.
Event mode
Custom text and visual states for private parties or tournaments.
Venue branding
Color and message behavior can be configured around the venue style.
Field Media
Bay Control in a real golf entertainment environment.
These visuals show the real operating screens, setup pages, theme controls, controller modules, and live demo material behind the platform.
Operations dashboard with Open Day, Close Day, Setup, and Themes controls.

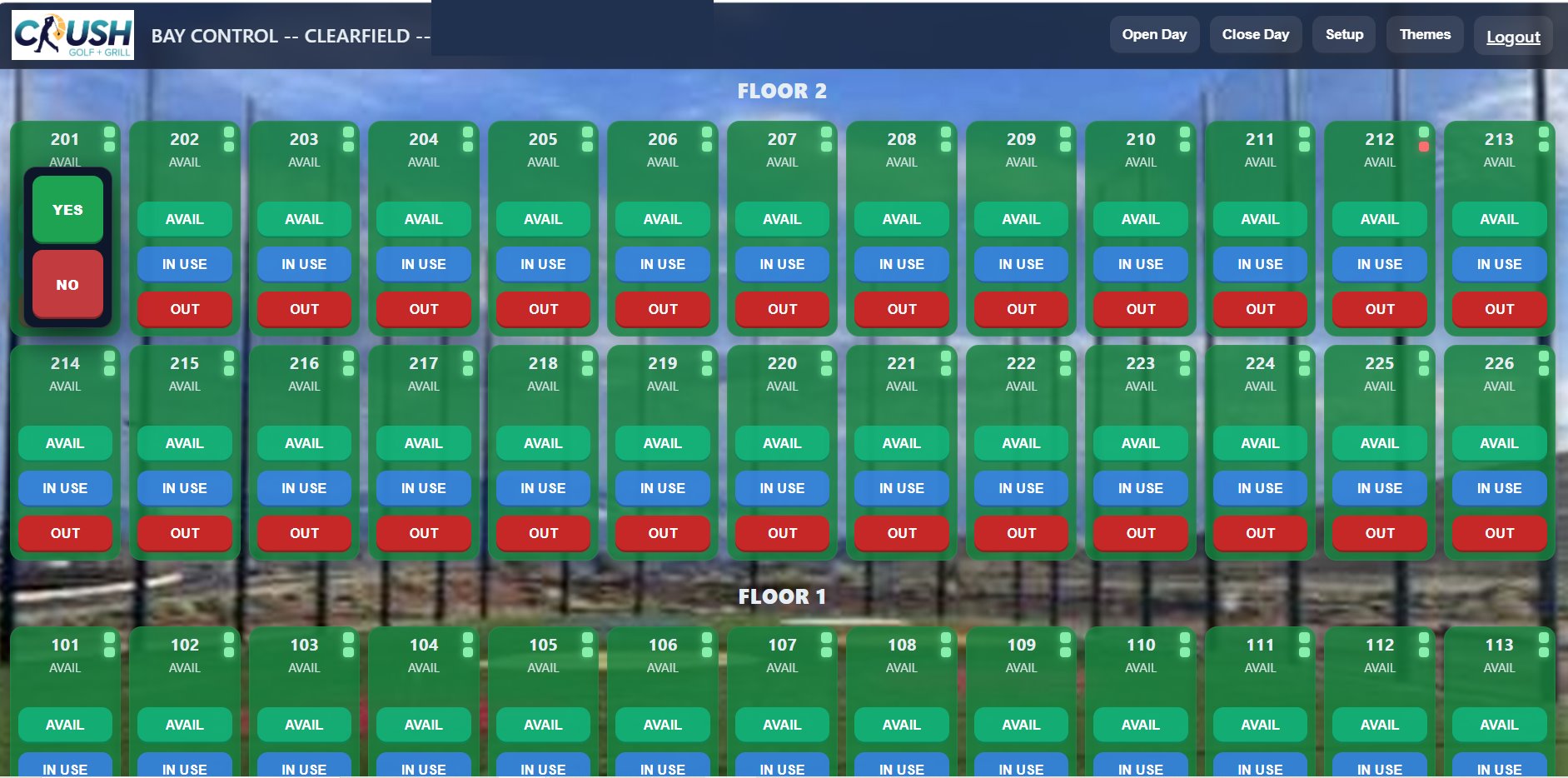

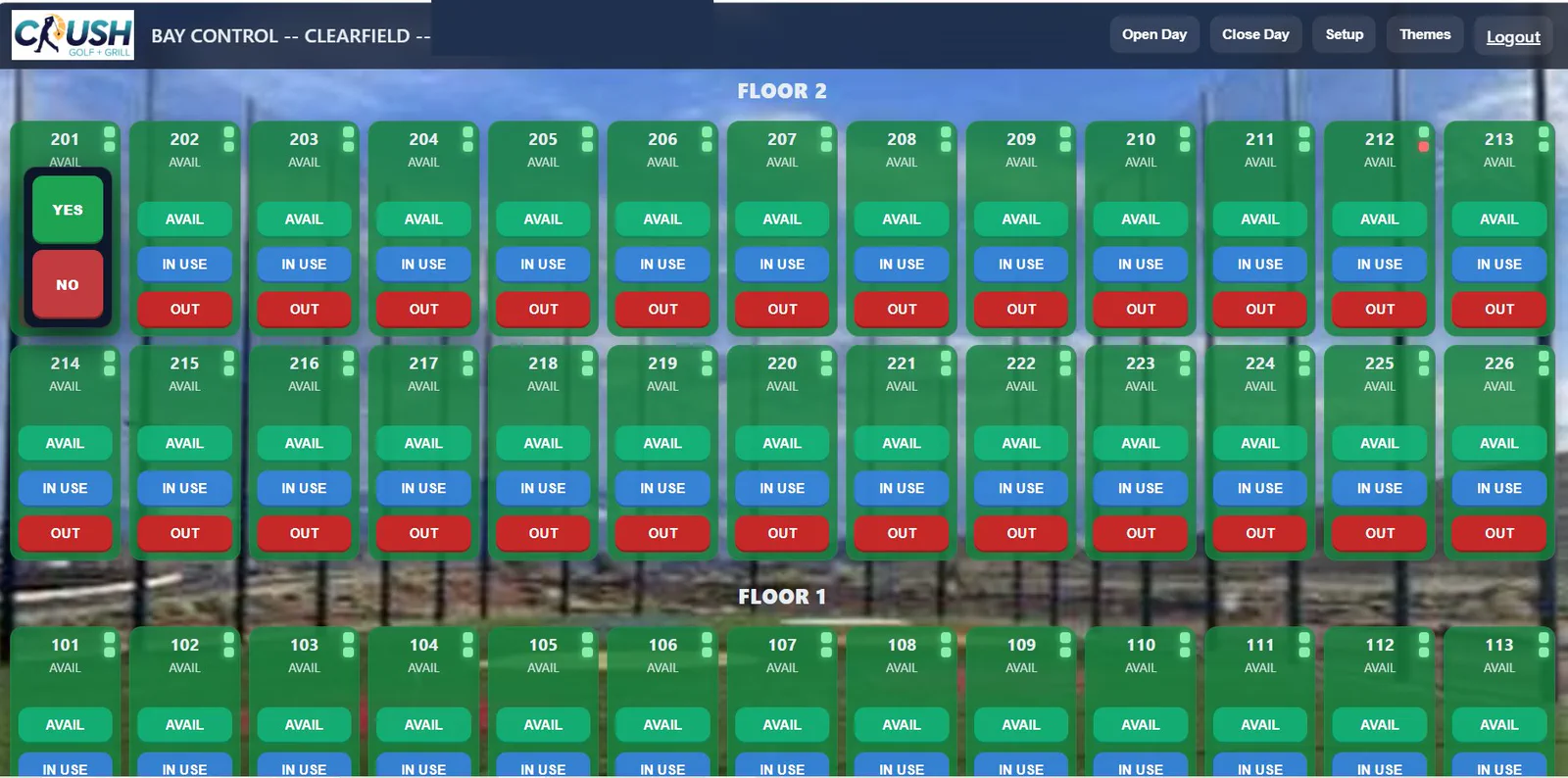

Out-of-service and maintenance states can be set directly from the bay overview.

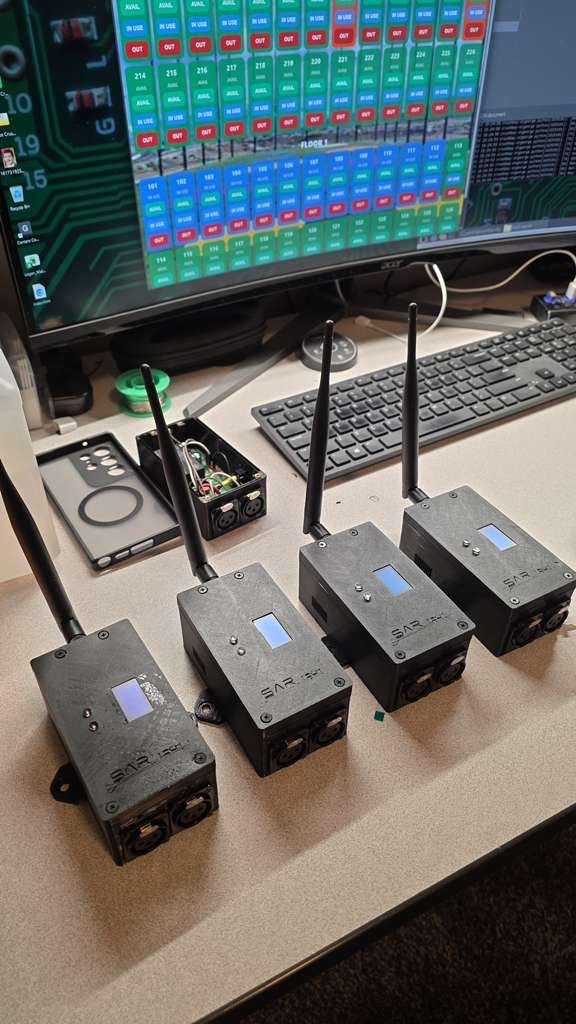

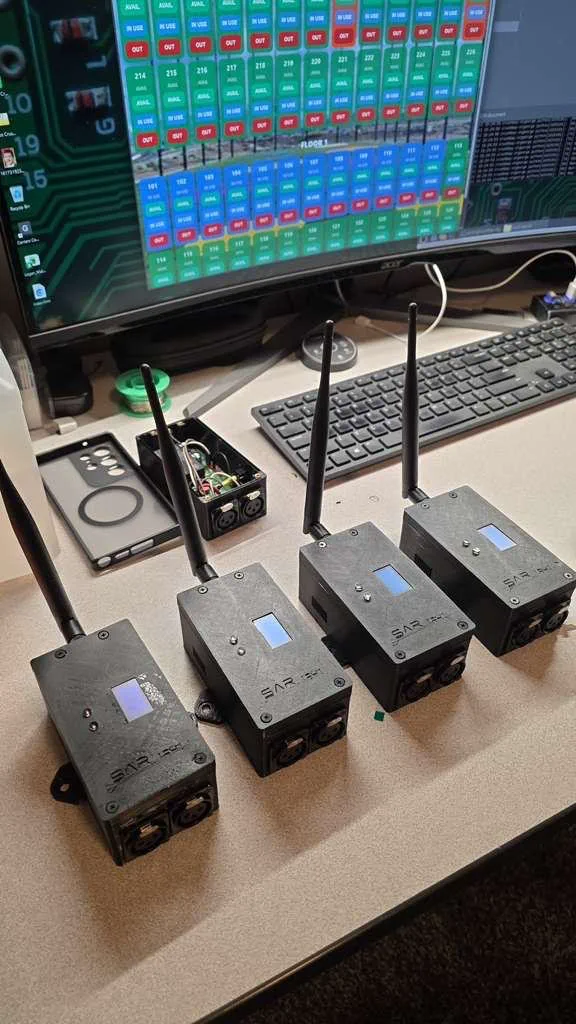

Ball dispenser controller modules prepared for bay-by-bay power control.

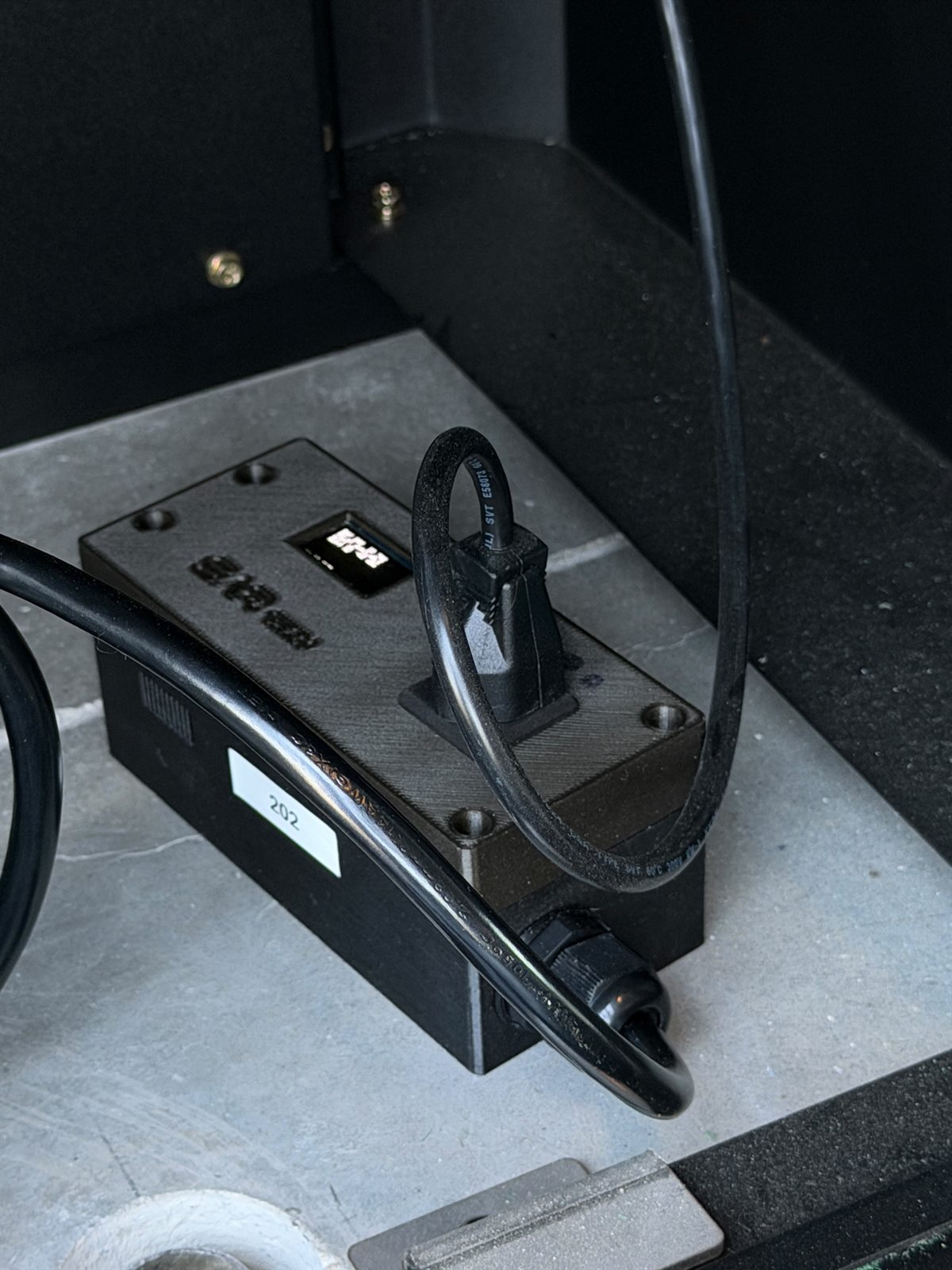

Installed dispenser controller module connected at an individual bay.

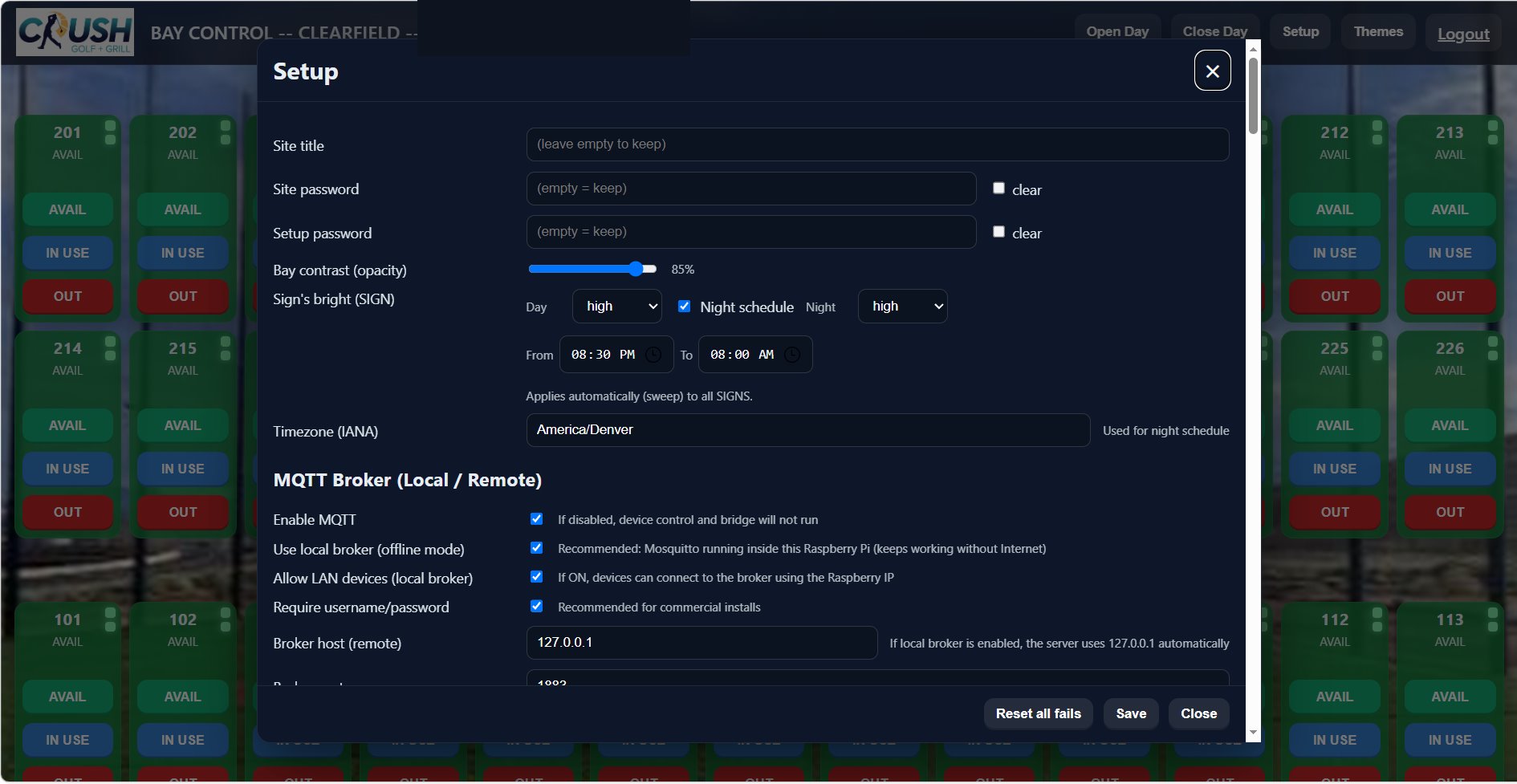

Setup screens manage local server, MQTT, controller, and bay configuration.

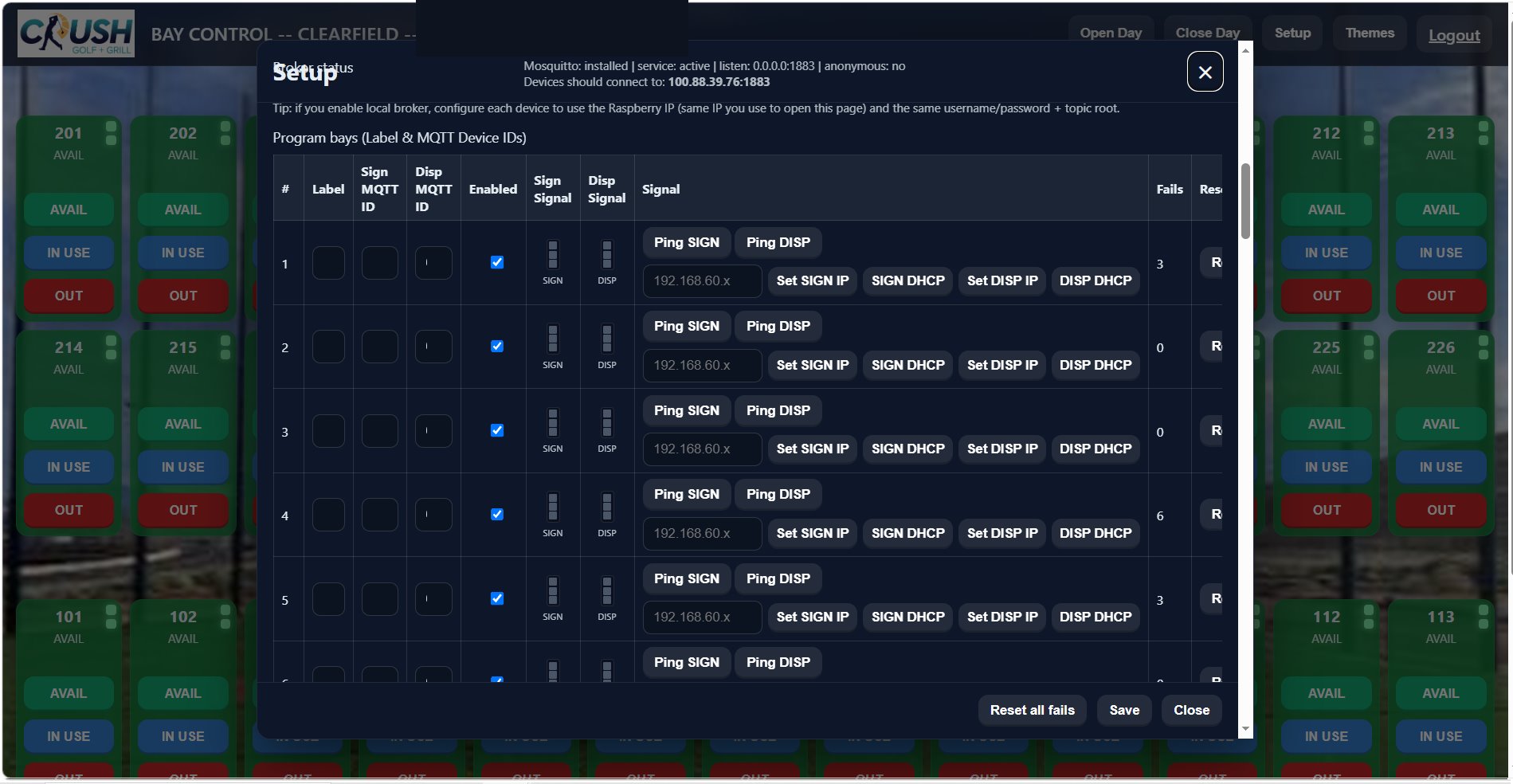

Bay configuration screen for bay numbers, IPs, timers, and controller assignments.
Theme management for seasonal and branded LED sign behavior.

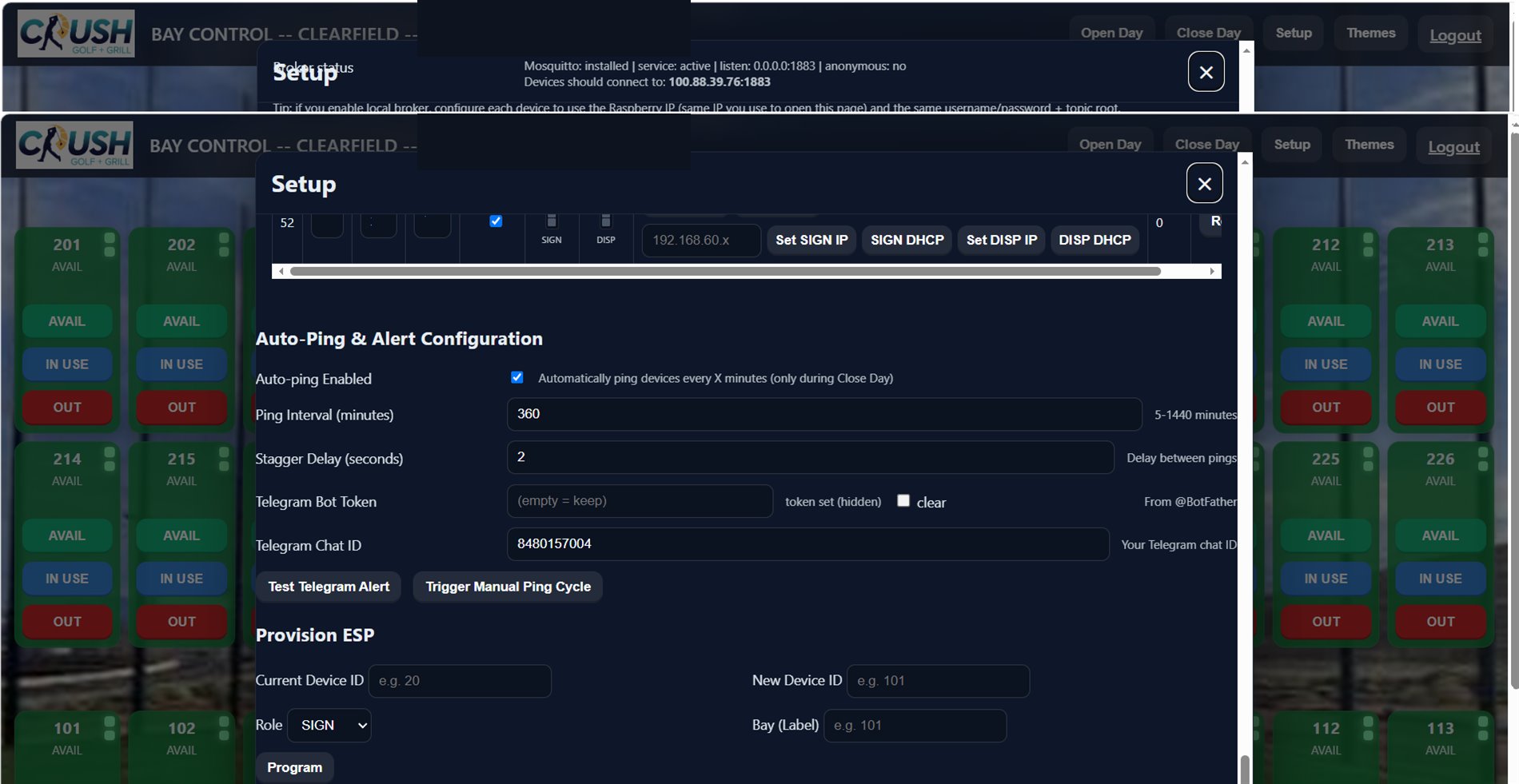

Automatic alert configuration for staff calls and bay-side notifications.
Start the conversation
Interested in Bay Control for your golf venue?
Contact NLJ Technologies to discuss bay operations, LED signage, ball dispenser control, booking integration, and custom workflows for your location.
